Underside inspection of 139 on the lift

I got #139 into the garage today and up on the lift to check out the situation. Emptied the interior of misc parts and started organizing. The interior is pretty much together other than rear seats, radio, and ecu. Undercarriage has a bit more rusty stuff than #931, mostly on the subframes and suspension members. Steering rack is leaking bad and looks beat.

So my plan now is to swap even more out of 931 Thinking of removing the complete engine/trans/xcase and all of the front subframes, steering rack, control arms, hubs, axles in one big monster unit. Most of those parts are in better or non rusty condition on 931.

• disconnect the engine wiring, radiator & heater hoses, shifter cables, clutch slave, side engine mounts, steering shaft, strut tops, wheels, brake lines all from the top.

• lower the car on the lift until the subframes are on a rolling dolly.
• unbolt the subframes from the unibody
• lift the unibody up.

• roll the whole front end away.

• swap cars on the lift and set the new car down onto the complete front end assembly and bolt it up

Tentativly Im thinking of doing the drivetrain swap around the weekend of May 23. I think I can get everything out of 931 and have 139 atleast rolling in one weekend. The the next week I should be able to button it up and have the car running.

Anyway, here's some pics from tonight:

 Rust is really not too bad, mostly around brackets and bolts.

Q: How much do I trust welded suspension that was done by the person who hacked that hood?

Wow. Clear plastic lens.

Headliner is absolutely mint. I'm floored by this as the one in 931 is all stained and groddy.

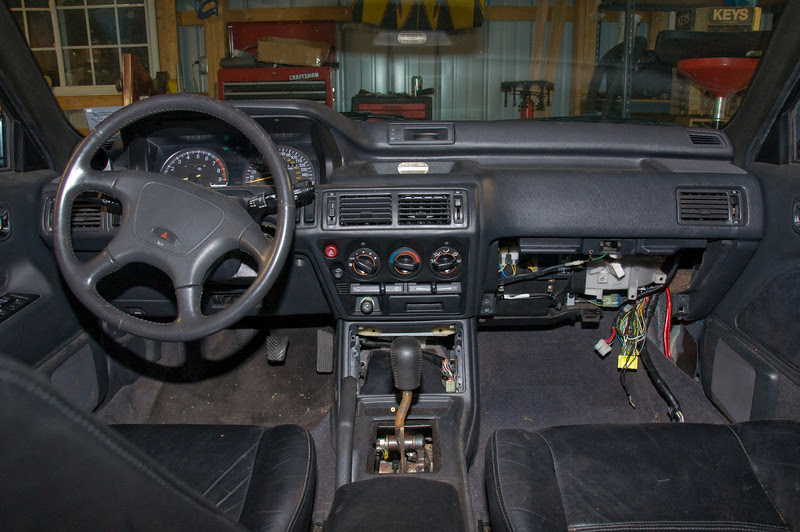

Dash is in great shape with no bubbling by the vents.

I haven't found any cracks or imperfections yet.

Trunk and rear seat area has been gone over with some sort of

undercoating that is hard and sandpaper like. It looks decent and clean.

The guy I bought the car from did a good job with the trunk mounted battery and running the cables, but I think Im going to remove it and use the lawnmower size battery mounted to the steering rack subframe. (lighter and no NHRA issues with the cutoff)
